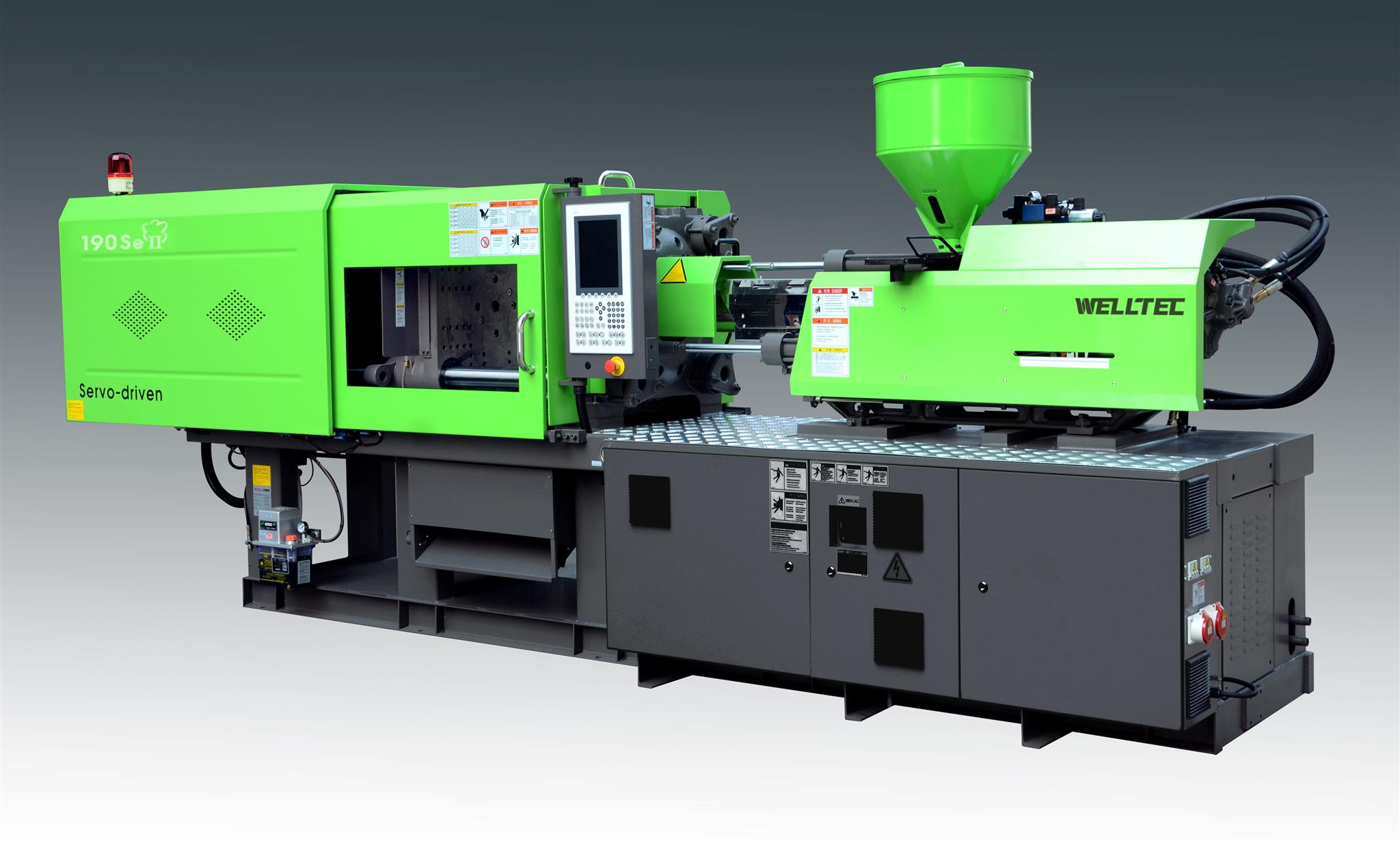

SEII Servo-driven Energy Saving Injection Moulding Machine
Click the image to enlarge.
SEII Servo-driven Energy Saving Injection Moulding Machine
When comparing with traditional design injection moulding machine , can achieve energy saving 50-85%

Excellent energy-saving effect

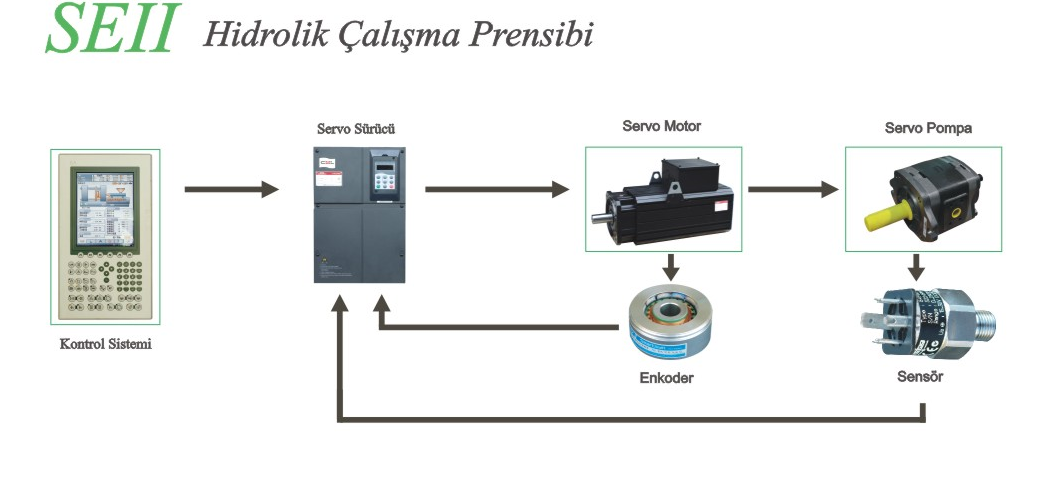

  • The newly developed “SeII” Greenline energy saving series injection moulding machine adopts the advanced servo-driven pump system and integrates with our 35 years manufacturing experience on plastic machinery。When comparing with traditional design injection moulding machine, canachieve energy saving 25%-75%。That saving effect is most significant on both holding and cooling phases

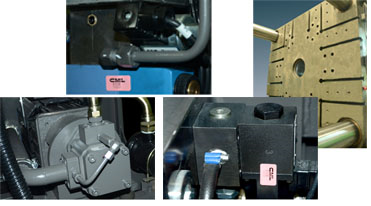

Outstanding performance

  • Proportional back pressure standard configuration,strengthens the control and regulation of the whole machine



Optimized toggle design and optimized platen design

  • Re-design toggle movement for shockless transition and fast-acting,more precise stop end;
  • Optimized mould platen with less deformation and stress,improve durability and critical for precision components moulding

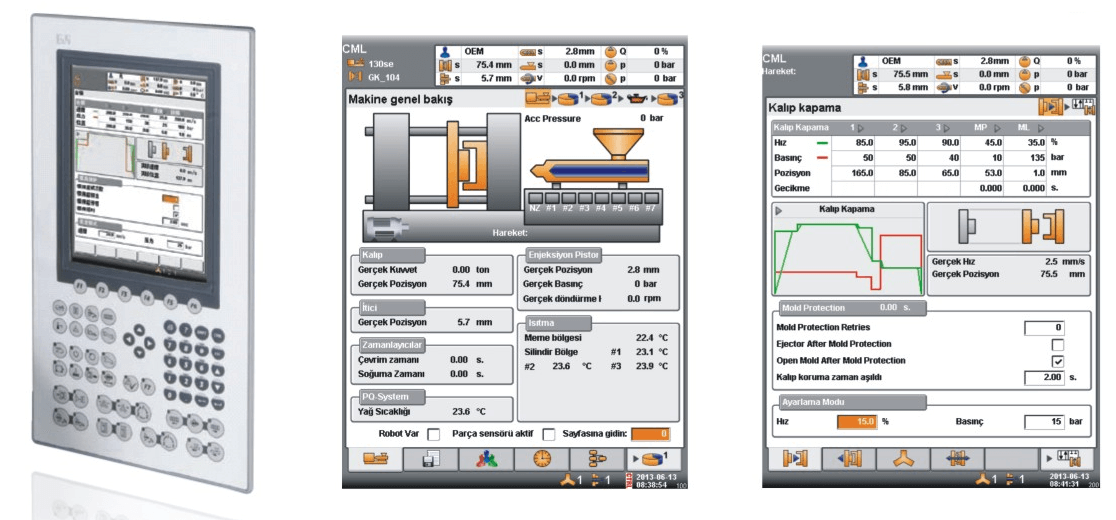

S09 Smart Control System

  • European imported from B&R Automation,professional control system for injection moulding machine;
  • 10.4‘’ TFT colour LCD display;
  • Parameter change logging,user can know who change the data and the scope of data changed;
  • Quality control statistical process data,proves the stability of machine;
  • Auto-tune temperature control PID value;
  • Mould data can save on USB memory and copy to another injection machine;
  • Utilize MODEM or Ethernet to remote monitor the moulding data and sequence;
  • Multi-languages text display
SEII Servo-driven Energy Saving Injection Moulding Machine
SEII Servo-driven Energy Saving Injection Moulding Machine
SEII Servo-driven Energy Saving Injection Moulding Machine
SEII Servo-driven Energy Saving Injection Moulding Machine
SEII Servo-driven Energy Saving Injection Moulding Machine

There are no video for this product.
